GoDiagram圖像和繪圖特性

GoDiagram有三種繪制基本GoObject對象的方法：

1. 形狀，例如矩形、橢圓、輪廓和線條。每個GoShape形狀都可以用筆來勾畫形狀的外部輪廓和用刷子來繪制內部。

2. 文本，可以有多種字體、大小和顏色。

3. 圖像，可以有多種格式，例如BMP、ICO、JPG、GIF和PNG。GoImage對象能夠從文件、資源管理和圖片列表中獲取相關圖像信息。

帶陰影圖案	文本加陰影
Go六邊形、Go八邊形、 Go立方體、Go圓柱體、Go梯形

GoDiagram 節點類型

GoDiagram提供許多嵌入式的節點類型和模板節點類型。

Go基礎節點

GoDiagram 圖像連接特性

接口用節點來說明終點的連接。它們的外觀可以是任何可繪制的圖像或零尺寸點。如果GoPorts（Go節點）的位置改變，GoLink（Go鏈接）也將作出相應改變來連接新的位置。用戶可以畫新的鏈接或重新連接已存在的鏈接，使鏈接與有效接口緊緊咬合。應用程序能夠在鏈接操作過程中自定義有效性檢查。

GoDiagram子圖和歸組特性

支持子圖這一功能對于許多不同的圖像應用程序來說非常的重要。子圖可以是用戶可拆分的節點，包括圖表、子圖內部和貫穿子圖外部的支持性鏈接。這可能像TreeApp一樣，包括擴展/ 收縮節點群的性能：

自動圖形布局

其自動布局方案（作為GoDiagram Professional的一部分出售）將為用戶提供極棒的展示圖表，并與其他產品相比可節省數千美元的費用。您可以選擇如下3種計算程序：

1. 樹形布局

2. 力導向布局

3. 分層布局

GoDiagram的工具

對象可以通過自定義和組合來展現多種不同的形態。在現實世界中，根據行業，這些會被稱為測量儀表、標度盤、標尺和測量儀。因?yàn)榭梢杂羞@么多的自定義，GoInstruments不提供預編譯工具。但是，InstrumentDemo（工具演示）實例應用程序定義了許多這樣可用于不同目的，有著不同外觀和操作的對象。

GoDiagram Graphics and Drawing Features

GoDiagram have three kinds of drawing primitive GoObjects:

1. Shapes, such as rectangles, ellipses, figures, and strokes. Each GoShape instance can have a Pen for drawing the outline of the shape and a Brush for painting the inside of the shape.
2. Text, in various fonts, sizes and colors.
3. Images, for various kinds of images such as BMP, ICO, JPG, GIF and PNG. GoImage objects can get their image information from files, resource managers, or image lists.

shapes with shadows	text with shadow
GoHexagon, GoOctagon, GoCube, GoCylinder, GoTrapezoid

GoDiagram Node Classes

GoDiagram provides many built-in Node classes as well as several .

GoBasicNode

GoDiagram Graph Link Features

Ports define the endpoints of links in nodes. They can have any drawable appearance, or they can be zero sized points. If the position of one or both of its GoPorts changes, the GoLink redraws itself to connect the new positions.Users can draw new links and relink existing links, with links "snapping" only to valid ports. Your application can customize the validity checking performed during a linking operation.

GoDiagram Subgraph and Grouping Features

Support for Subgraphs is important to many different graphical applications. Subgraphs are user-collapsible nodes that contain graphs, supporting links within and across the subgraph boundaries.That might include the ability to expand / contract groups of nodes like TreeApp:

Automatic Graph Layout

Our Automatic Layout package (sold as part of GoDiagram Professional) provides well laid out diagrams for thousands of dollars less than other products.You can choose from 3 algorithms:

1. Tree Layout
2. Force Directed Layout
3. Layered Digraph Layout

Instruments for GoDiagram

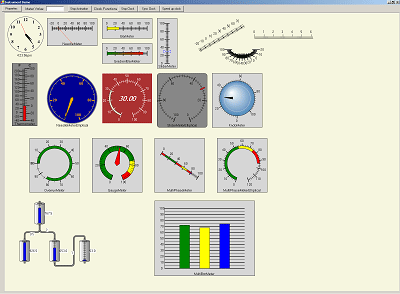

The objects can be customized and combined to present many different kinds of appearances. In the real world, depending on the industry, such things are called meters, dials, rulers or gauges. Because there is so much customization that can be done, GoInstruments does not provide any prebuilt instruments. The InstrumentDemo sample application, however, does define many such objects for various purposes and with various appearances and behaviors.
